Quick start

In standard configuration TrinityX provides the following services to the cluster:

  • Luna, our default super-efficient node provisioner
  • OpenLDAP
  • SLURM or OpenPBS
  • Prometheus and Grafana
  • Open OnDemand
  • Graphical management applications
  • Infrastructure services such as NTP, DNS, DHCP
  • and more

It will also set up:

  • NFS-shared home and application directories
  • OpenHPC applications and libraries
  • environment modules
  • rsyslog
  • High Availability/HA
  • and more

Steps to install TrinityX

1. Install an Enterprise Linux version 8 or 9 (i.e. RHEL, Rocky) on
your controller(s). It is recommended to put /trinity and
/trinity/local on its own filesystem. Note the partition
configuration must be finalized (i.e. mounted and in fstab) before
starting the TrinityX installation.

2. Configure network interfaces that will be used in the cluster, e.g
public, provisioning and MPI networks on the controller(s). Ansible
uses the interface address to determine the course of the playbook.

3. Configure passwordless authentication to the controller itself
or/and for both controllers in the HA case.

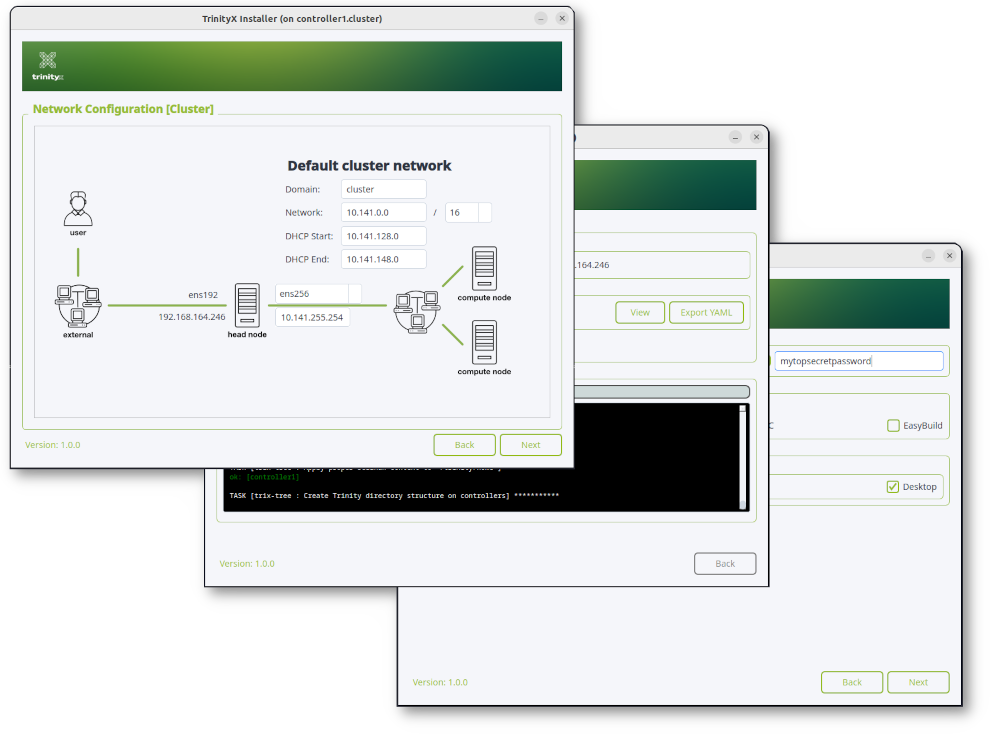

--- Guided installation ---

4. Clone TrinityX repository into your working directory. Then run
INSTALL.sh to install and be guided through the steps:

# git clone http://github.com/clustervision/trinityX
# cd trinityX
# bash INSTALL.sh

--- OR ---

Step by step manual configuration and installation

4. Clone TrinityX repository into your working directory. Then run prepare.sh to install all the prerequisites:

# git clone http://github.com/clustervision/trinityX
# cd trinityX
# bash prepare.sh

5. Copy the all file which will contain the controller and cluster configuration. Please view the contents of the file on the directives that may need modification(s):

# cd site
# cp group_vars/all.yml.example group_vars/all.yml

group_vars/all.yml: You might also want to check if the default firewall parameters in the same file apply to your situation::

firewalld_public_interfaces: [eth0]
firewalld_trusted_interfaces: [eth1]
firewalld_public_tcp_ports: [22, 443]

In case of a single controller (default), we now assume that the shared IP address is also available on the controller node, this is to ease future expansion.

If applicable, configure the dns forwarders in trix_dns_forwarders when the defaults, 8.8.8.8 and 8.8.4.4 are unreachable.

6. Configure hosts file to allow ansible to address controllers.

# cp hosts.example hosts

Example for non-HA setup:

[controllers]
controller ansible_host=10.141.255.254

Example for HA setup with shared SSH key, a.k.a. passwordless access to the other controller(s):

[controllers]
controller1 ansible_host=10.141.255.254 controller2
ansible_host=10.141.255.253

Alternatively for HA setup, the group_vars/all.yml file can be copied to the other controllers and run sequentially. In this case, no SSH keys need to be exchanged between the controllers and the hosts file does not require any change. It's important though to have the primary controller finish the controller.yml playbook first before running on the other controllers.

7. Start TrinityX installation:

# ansible-playbook controller.yml

Note: If errors are encoutered during the installation process, analyze the error(s) in the output and try to fix it then re-run the installer.

Note: By default, the installation logs will be available at /var/log/trinity.log

8. Create a default RedHat/Rocky OS image:

# ansible-playbook compute-redhat.yml

9. Optionally Create a default Ubuntu OS image:

# ansible-playbook compute-ubuntu.yml

Now you have your controller(s) installed and the default OS image(s) created!

Customizing your installation

Now, if you want to tailor TrinityX to your needs, you can modify the ansible playbooks and variable files.

Descriptions to configuration options are given inside controller.yml and group_vars/*. Options that might be changed include:

  • Controller's hostnames and IP addresses
  • Shared storage backing device
  • DHCP dynamic range
  • Firewall settings

You can also choose which components to exclude from the installation by modifying the controller.yml playbook.

HA or High Availability

group_vars/all.yml settings

Enabling HA can be done by setting ha: true in group_vars/all.yml.

Other parameters are:

  • enable_ipmilan_fencing: true This requires valid BMC config for the controllers as well as fence_ipmilan_login and fence_ipmilan_password.
  • enable_heartbeat_link: true allows an additional ring for heartbeat. The actual ip addresses can be configured before or after the installation.

Fencing is supported by enforcing stonith. The BMC-s of each controller need to be configured to match the settings for ip address, name and password in the HA section. A mismatch will result in a non proper working HA setup. Alternatively, fencing can be disabled but is not recommended.

shared disk

To make HA work properly, services need to understand the HA concept. Many services do, however not all. To still support HA for these services, a shared disk is required, where the active controller has access to this disk and start those services. The disk can be DRBD (default), but also iSCSI, a DAS or NAS, or combinations of. The configuration or combinations of need to provide at least the following volumes:

  • {{ trix_ha }}
  • {{ trix_home }}
  • {{ trix_shared }}
  • {{ trix_ohpc }} (if OpenHPC is enabled)

LVM and ZFS are supported, where partitions can be made on top of the shared disk. On top of these partitions all regular filesystems, like xfs and ext4 are supported.
